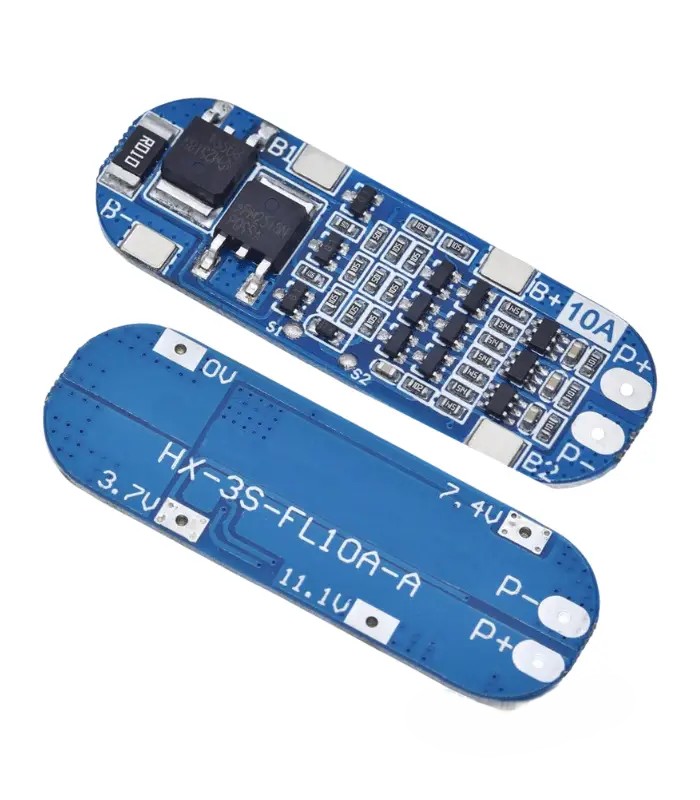

3S BMS 10A - Protection Board for 18650 Battery Pack

3S BMS 10A (Protection Board for 18650 Battery Pack) is a compact, high-efficiency lithium-ion battery management board designed to safely control and protect a 3-cell series (3S) 12.6V lithium-ion or LiPo battery pack. Built with precision voltage detection circuitry and integrated power MOSFETs, this module protects connected 18650 cells against overcharging, over-discharging, overcurrent, and short-circuit conditions. Capable of supporting up to 10A continuous discharge current, it is an essential power safety component for building custom 12V battery packs for DIY power tools, 12V DC router UPS backups, wireless speaker systems, and mobile robotics.

Features

• Designed specifically for 3-cell series (3S) lithium battery packs with a maximum full-charge voltage of 12.6V
• Continuous discharge current support up to 10A (with instantaneous peak current handling up to 20A)
• Integrated overcharge protection automatically cutting off power when any individual cell reaches 4.25V–4.35V
• Over-discharge protection isolating the load when cell voltage drops below safe thresholds (2.3V–3.0V)
• Onboard overcurrent and short-circuit protection preventing wire fires, component failure, and cell damage
• High-precision voltage monitoring ensuring stable, low-power operation in standby mode
• Compact PCB form factor with clearly labeled solder pads (B+, B1, B2, B-, P+, P-) for straightforward wiring
• Low internal resistance design minimizing thermal buildup under heavy electrical loads

Applications

• Custom 12V DC battery packs made from 18650 cells for Wi-Fi routers and ONU mini UPS units
• Power management and safety boards for 12V DIY cordless power tools and electric screwdrivers
• Battery protection for Bluetooth speaker systems, portable audio amplifiers, and LED lighting rigs
• 12V battery supply rails for 2WD/4WD robotics, drone ground stations, and outdoor IoT nodes
• Polytechnic diploma, university engineering thesis, and Arduino/ESP32 power management projects

Important Notes:

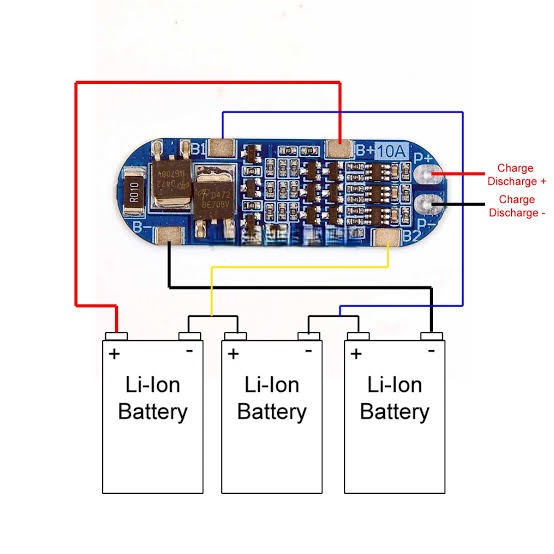

• Correct Wiring Sequence: Connect the battery cells strictly in order: B- (0V) B1 (3.7V) B2 (7.4V) B+ (11.1V / 12.6V). Avoid touching adjacent solder pads simultaneously during soldering.
• Activation / First-Time Charging: When connecting the BMS for the first time, the output on P+ / P- may be zero or locked. Connect a 12.6V charger across P+ / P- for a few seconds to activate the BMS control IC.
• Balanced Cell Mixing: Always use 18650 cells of the same brand, internal resistance, age, and initial voltage state. Do not mix good cells with degraded cells or different capacity ratings, as unbalanced cells will cause early BMS tripping.
• Not a Charger Board: A BMS is a protection circuit, not a charger. Always use a proper constant-current/constant-voltage (CC/CV) 12.6V DC lithium charger to charge the battery pack safety via the P+ / P- terminals.

Package includes

• 1 x 3S BMS 10A Protection Board for 18650 Lithium Battery Pack
