TP4056 1A Li-ion lithium Battery Charging Module With Current Protection - Type C

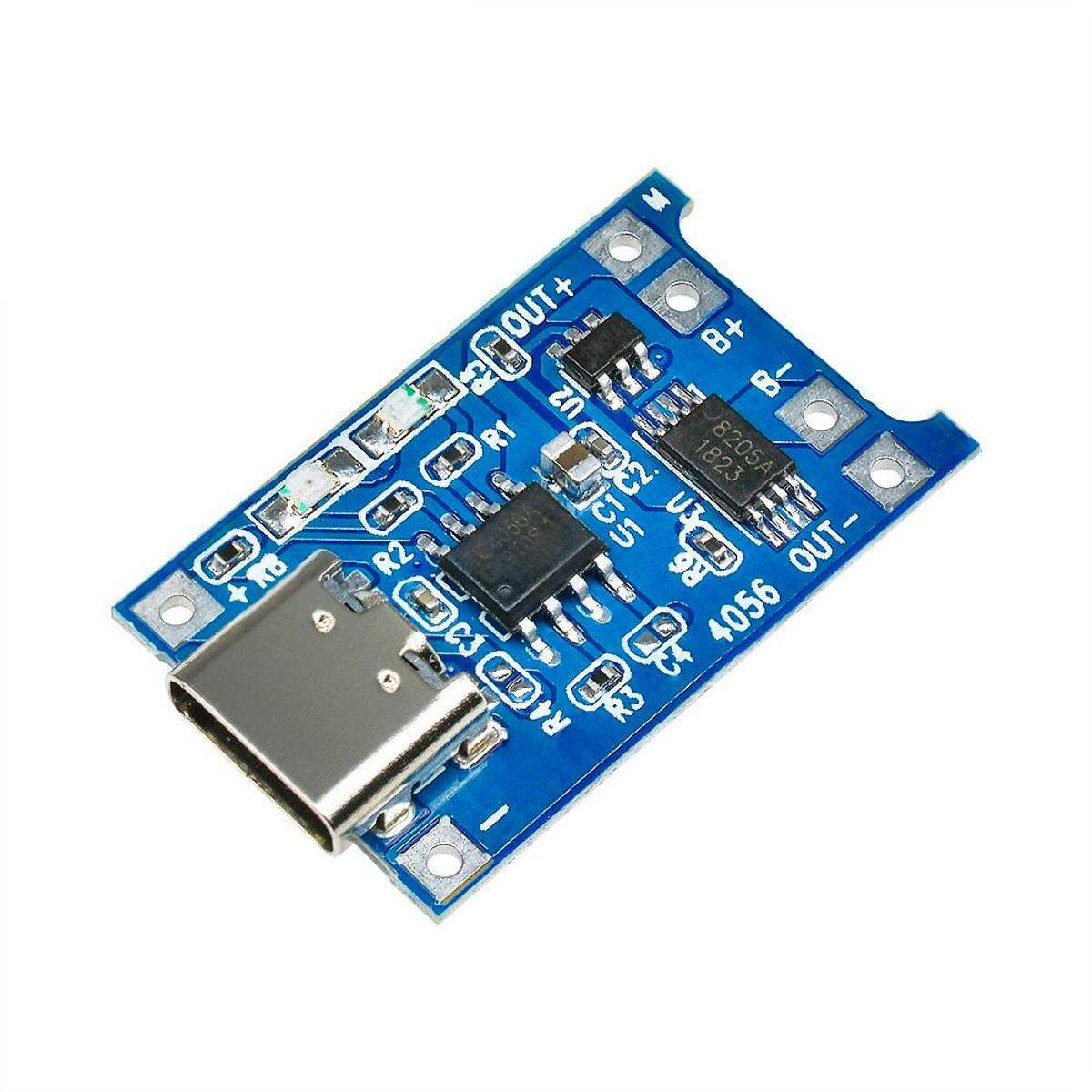

TP4056 1A Li-ion Lithium Battery Charging Module with Current Protection (Type-C) is a compact, complete linear charger board for single-cell 3.7V lithium-ion or lithium-polymer (LiPo) batteries (such as 18650, 14500, or flat LiPo cells). Upgraded with a modern USB Type-C input port, this module incorporates the TP4056 charging IC alongside dedicated DW01A battery protection and FS8205A dual MOSFET ICs. It provides safe 1A constant-current/constant-voltage (CC/CV) charging while protecting the connected battery cell against over-charge, over-discharge, over-current, and short circuits.

Features

• Modern USB Type-C input interface for convenient power connection from standard 5V USB adapters
• Integrated TP4056 linear charging controller providing automatic constant-current and constant-voltage (CC/CV) charging management
• Complete dual-protection system (DW01A + FS8205A) safeguarding cells against over-charging, deep discharge, and short circuits

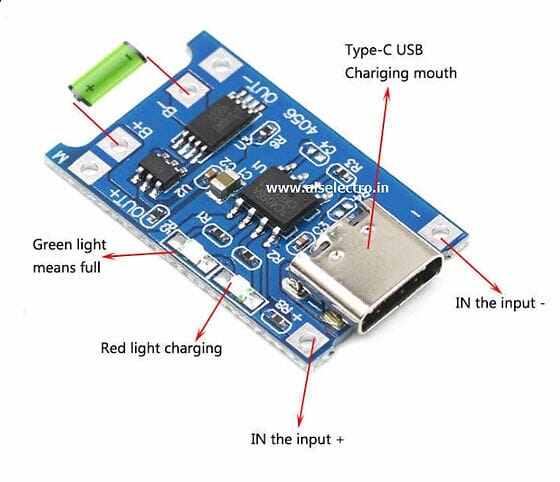

• Dual status LED indicators: Red LED indicates charging in progress; Blue/Green LED indicates charge complete
• Separate power output pads (OUT+ and OUT-) allowing simultaneous battery charging and load powering
• Pre-set default charging current of 1A (configurable down to 100mA by changing the onboard RPROG resistor)
• Soft-start feature to limit inrush current during initial connection
• Automatic trickle-charge feature to recover deeply discharged cells (below 2.9V)
• Automatic termination when charge current drops to 1/10th of the programmed value after reaching final float voltage

Applications

• DIY portable power banks, single-cell 18650 battery bank modules, and USB power packs
• Lithium battery charger circuits for IoT sensor nodes, NodeMCU, ESP32, and Arduino projects
• Handheld electronic devices, portable LED flashlights, and wireless gadgets
• Solar-assisted single-cell battery charging setups (when paired with regulated 5V solar panels)
• Polytechnic diploma, university engineering thesis, and robotics power management systems
• Upgrading older micro-USB or mini-USB lithium battery charging modules to USB Type-C standards

Important Notes:

• Always connect the battery before connecting the USB power cable to ensure proper protection circuit activation.
• Connect the battery positive terminal strictly to BAT+ and the battery negative terminal strictly to BAT-. Reverse polarity connection will permanently damage the TP4056 chip.
• Connect your external load (e.g., motor driver, boost converter, microcontroller) to OUT+ and OUT-, NOT directly to BAT+ and BAT-, so the DW01A protection IC can safely disconnect the load if the battery voltage drops below 2.5V.
• Ensure the charging current does not exceed 30% to 40% of the battery capacity (e.g., a 1000mAh battery should ideally be charged at 300mA–400mA for maximum lifespan; change the PROG resistor if lower charging current is required).
• Heat dissipation is normal during 1A high-current charging; ensure adequate airflow around the module during operation.

Package includes

• 1 x TP4056 1A Li-ion Lithium Battery Charging Module with Current Protection (Type-C)
