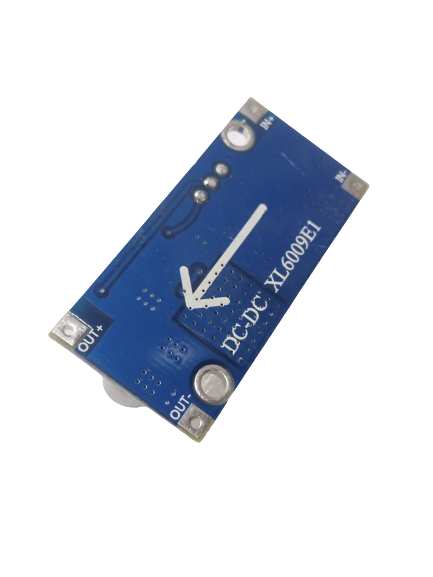

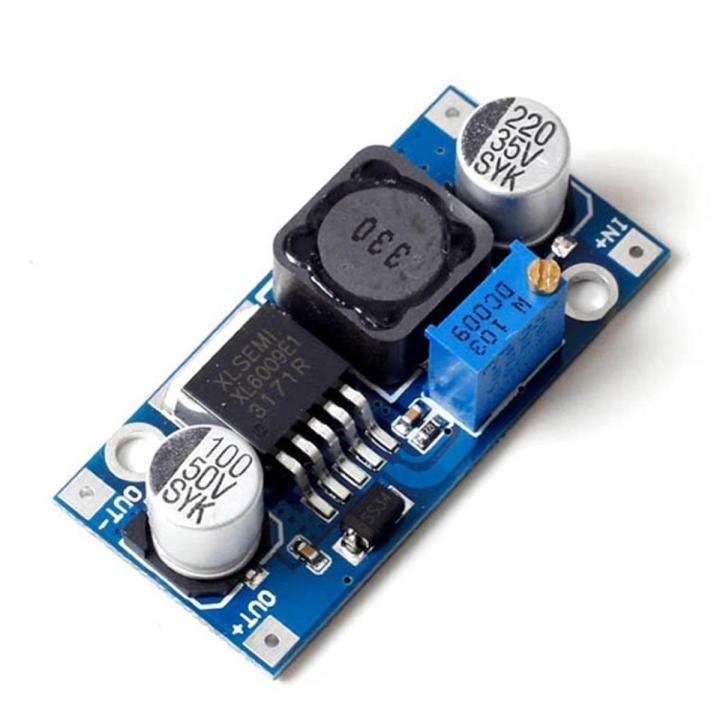

DC-DC Boost Converter Module XL6009 (XL6009E1)

DC-DC Boost Converter Module XL6009 (XL6009E1) is a high-performance, step-up power supply module designed to boost lower DC input voltages to a higher regulated DC output voltage. Built around the 2nd generation 400kHz high-frequency XL6009 switching regulator IC, it delivers up to 94% conversion efficiency, outperforming older LM2577 step-up modules. Featuring an onboard multi-turn precision potentiometer, this module allows fine output voltage adjustments from 5V up to 35V DC, making it an essential power solution for battery-powered projects, solar charging systems, electronic LED drivers, and robotics power rails.

Features

• Wide DC input range (3V to 32V) capable of step-up conversion from single 18650 cells, USB power, or LiPo battery packs
• Adjustable step-up output range (5V to 35V DC) using an onboard multi-turn precision trimmer potentiometer
• High 400kHz switching frequency enabling high power output with minimal output ripple and compact inductor sizing
• High conversion efficiency up to 94%, reducing energy loss and thermal dissipation
• Integrated high-power MOSFET switch supporting up to 4A peak switching current
• Compact PCB layout with pre-drilled corner mounting holes for easy installation inside project enclosures
• Reliable thermal shutdown protection and built-in current limit protection
• Ideal for stepping up 3.7V Li-ion or 5V USB power to power 12V relays, solenoids, motors, and LED strips

Applications

• Stepping up 3.7V / 7.4V battery packs to 12V or 24V DC for motors, relays, and fans in robotics
• Portable power banks, USB 5V to 9V/12V converters, and field instrument power supply units
• Solar-powered battery chargers, automotive electronics, and outdoor IoT sensor nodes
• Driving high-power LED strips, DC pumps, and industrial control circuits from low-voltage sources
• Polytechnic diploma, university engineering thesis, and Arduino/ESP32 power management projects

Important Notes:

• Step-Up Only Function: This is a pure boost (step-up) module. The output voltage must always be set higher than the input voltage by at least 1.5V. It cannot step down or regulate if the input voltage exceeds the target output.
• Potentiometer Calibration: When using a brand-new module for the first time, you may need to rotate the blue potentiometer screw counter-clockwise 10 to 15 full turns before the output voltage begins to change.
• Thermal Management: If operating continuously at switching currents above 2A or total output power above 15W, attach an external aluminum heat sink to the XL6009 IC to prevent thermal shutdown.
• No Reverse Polarity Protection: Connecting input power in reverse (+ to -) will instantly destroy the onboard XL6009 IC. Always double-check wire connections with a multimeter before applying power.

Package includes

• 1 x DC-DC Boost Converter Module XL6009 (XL6009E1)
