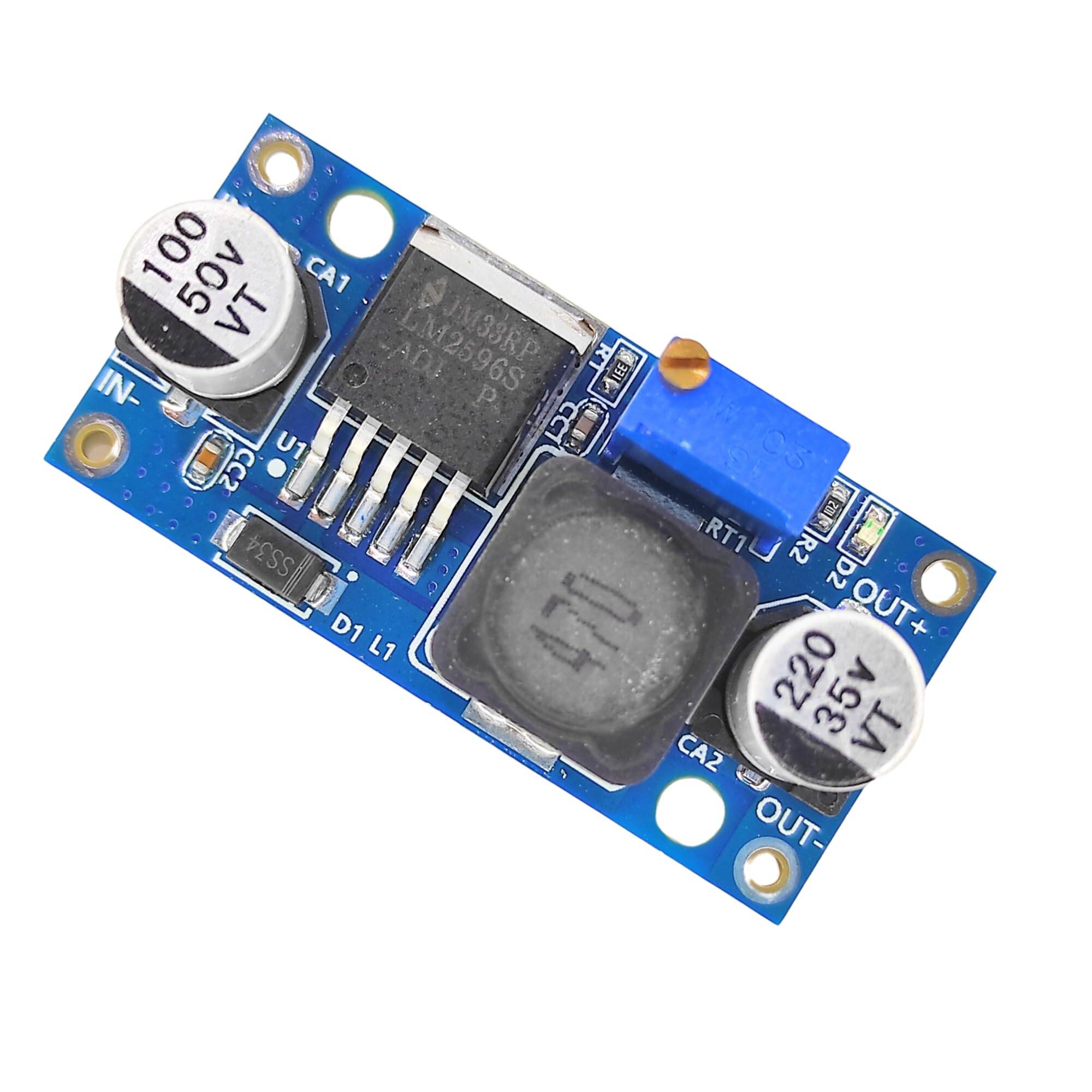

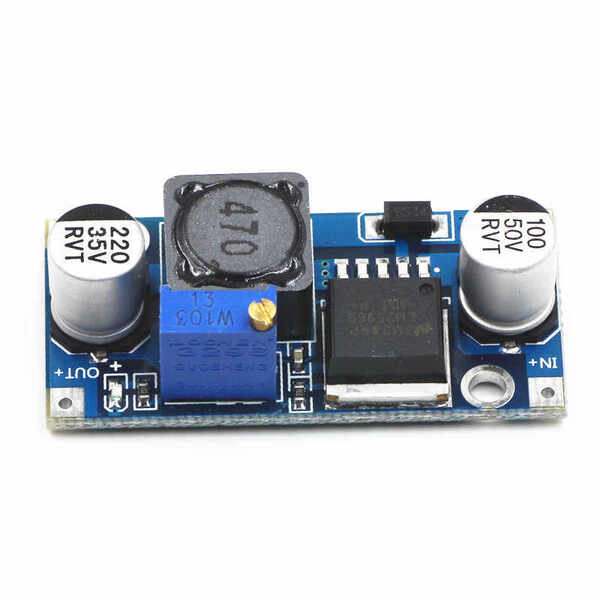

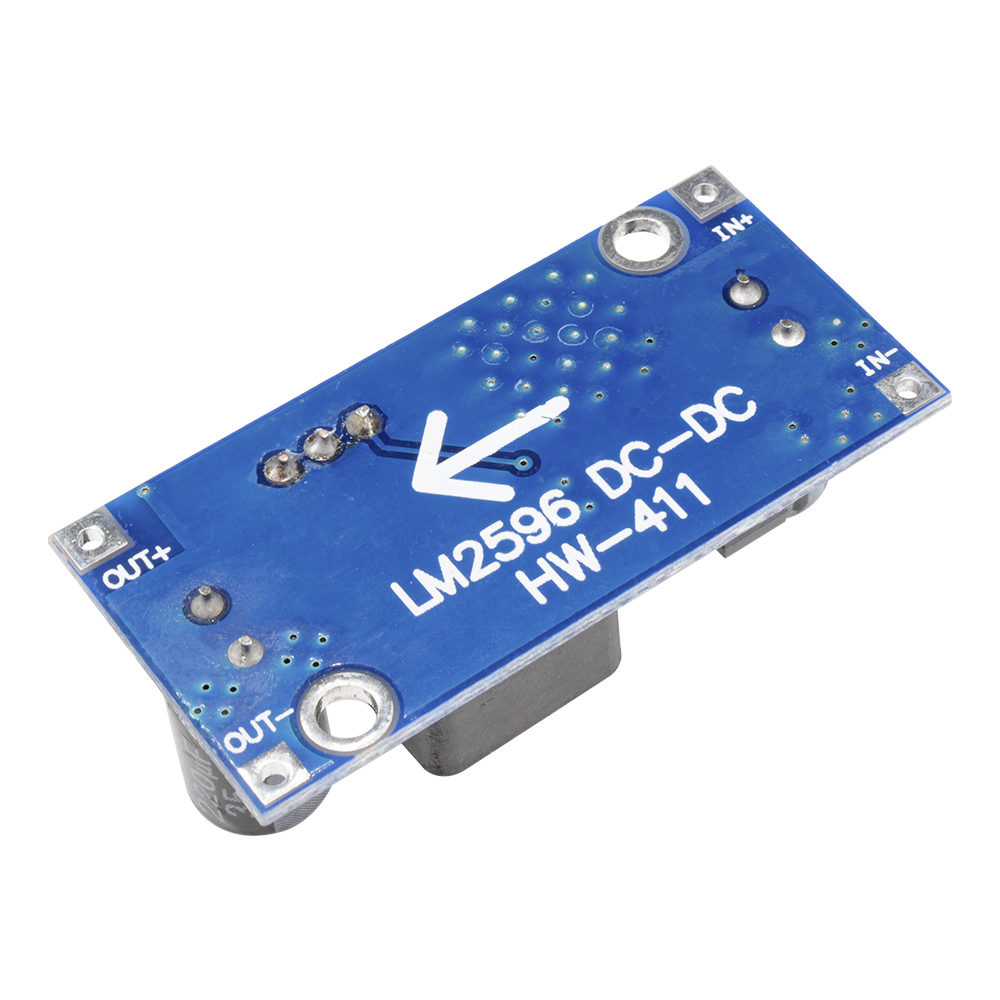

DC-DC Step Down Adjustable Power Supply Module 3A Max Buck Converter ( LM2596)

DC-DC Step Down Adjustable Power Supply Module (LM2596) is a highly popular, easy-to-use buck converter board designed to step down higher DC input voltages to lower regulated DC output voltages. Powered by the reliable LM2596 switching regulator IC operating at a 150kHz switching frequency, this module delivers up to 92% efficiency with significantly reduced heat generation compared to traditional linear voltage regulators (such as the 7805). Equipped with an onboard multi-turn precision potentiometer, it allows users to smoothly dial in precise output voltages from 1.25V up to 35V DC, making it an indispensable power step-down solution for robotics, battery-driven electronics, microcontrollers, and DIY projects.

Features

• Wide DC input range (3.2V to 40V) capable of taking power from 12V adapters, 24V industrial rails, or multi-cell LiPo batteries
• Continuously adjustable step-down output range (1.25V to 35V DC) tuned via an onboard multi-turn trimmer potentiometer
• High output current capability supporting up to 3A max (2A continuous operation without extra cooling)
• 150kHz switching frequency providing stable power conversion and low output ripple
• High conversion efficiency up to 92%, offering energy savings and cool operation under normal loads
• Integrated thermal shutdown, current limit protection, and output short-circuit protection
• Compact PCB form factor featuring input/output solder pads and mounting holes for secure enclosure mounting
• Perfect for stepping down 12V or 24V supply lines to 5V for Arduino/Raspberry Pi or 3.3V for ESP32/ESP8266 boards

Applications

• Lowering 12V or 24V DC battery power to 5V to power Arduino, Raspberry Pi, ESP32, and USB devices
• Variable benchtop power supply modules for testing DIY electronic components and sensor circuits
• Power regulation in autonomous mobile rovers, drone electronics, and robotic actuators
• Industrial control panels requiring regulated 3.3V, 5V, 9V, or 12V power rails from higher supply lines
• Polytechnic diploma, university engineering thesis, and STEM power supply circuit design

Important Notes:

• Step-Down Only Function: This is a pure buck (step-down) module. The input voltage must be at least 1.5V to 2V higher than the desired output voltage at all times.
• Initial Potentiometer Tuning: When first powering up a new module, you may need to turn the blue potentiometer screw counter-clockwise 10 to 15 full turns before the output voltage begins to drop.
• Thermal Management: If operating at continuous currents exceeding 2A or total output power over 15W, attach an aluminum heat sink to the back of the PCB or directly onto the LM2596 chip to avoid thermal throttling.
• No Reverse Polarity Protection: Reverse polarity connections (+ and - swapped at the input) will instantly damage the onboard LM2596 IC. Verify input connections with a multimeter before applying power.

Package includes

• 1 x DC-DC Step Down Adjustable Power Supply Module 3A Max Buck Converter (LM2596)
