LCD Display 16X2

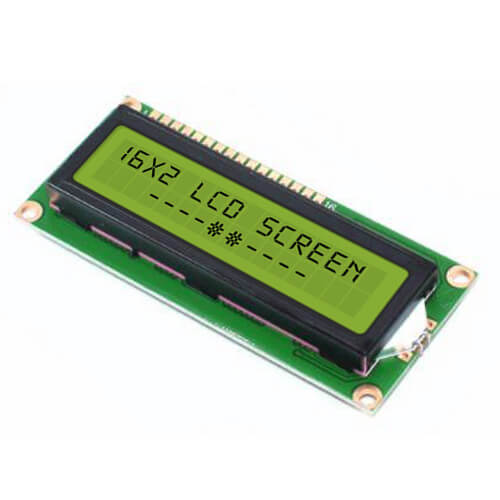

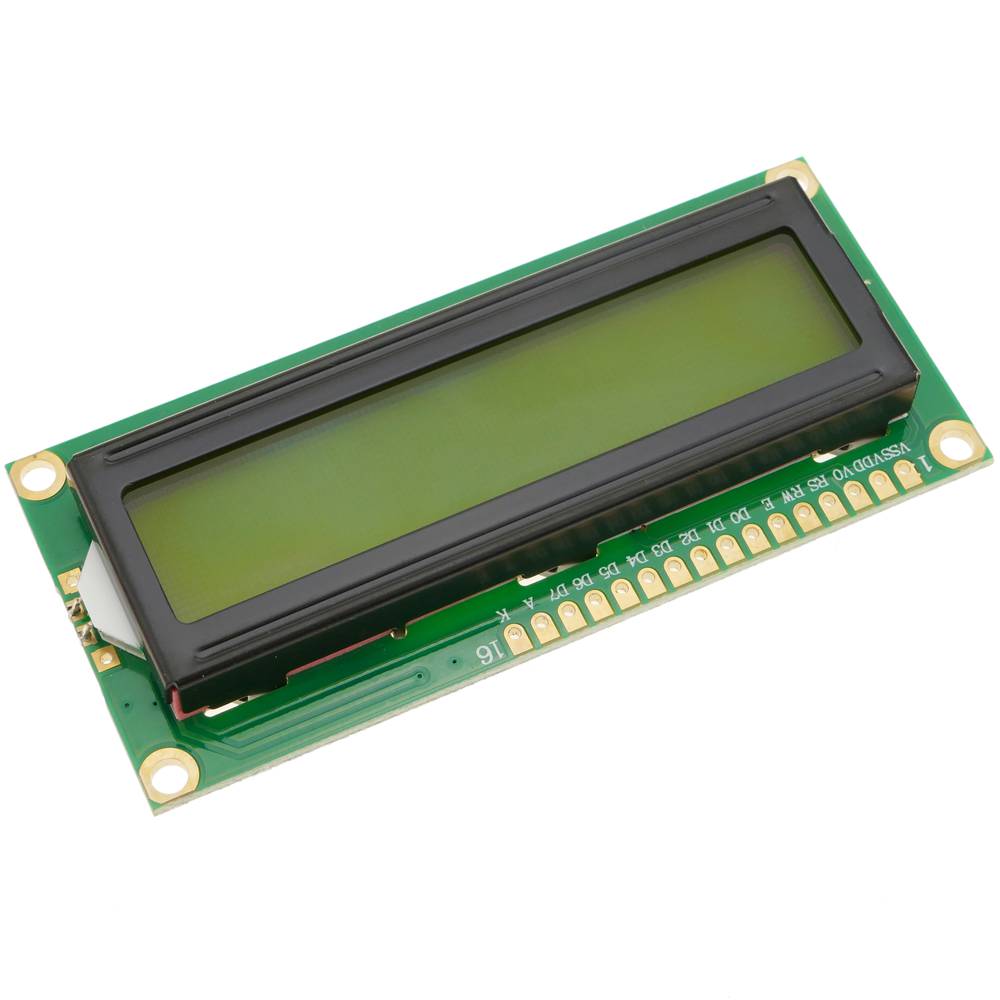

LCD Display 16x2 is a classic, highly reliable alphanumeric dot-matrix liquid crystal display module capable of showing 32 characters total across 2 rows of 16 characters each. Powered by the industry-standard HD44780 (or compatible) controller chipset, this display provides crisp, clear dark text against a vibrant backlit screen. While it can be wired directly using 6 to 12 microcontroller GPIO pins, it is also fully compatible with I2C adapter backpack boards to simplify wiring down to just two signal lines. It remains an essential visual output device for embedded systems, prototyping, and smart electronic projects.

Features

• Displays 32 characters total (16 columns across 2 parallel rows)
• Driven by the robust, industry-standard HD44780 dot-matrix driver chipset
• Available in vibrant backlight color variants (Classic Blue or Bright Green with white/black text)
• Adjustable contrast control via an external potentiometer or I2C adapter board
• Supports custom user-defined character generation (up to 8 custom bitmap characters)
• Built-in character generator ROM (CG-ROM) supporting English alphabets, numbers, and basic symbols
• Parallel 4-bit / 8-bit interface mode, or easily convertible to serial 2-wire control via an I2C backpack module
• Fully compatible with standard open-source libraries (LiquidCrystal.h, LiquidCrystal_I2C.h)

Applications

• Diagnostic readouts for microcontrollers (Arduino, ESP32, ESP8266, Raspberry Pi)
• Industrial instrumentation panels, digital counters, and digital weighing scales
• Smart home automation hubs, security system panels, and thermostat displays
• Weather station readouts showing live temperature, humidity, and atmospheric data
• Polytechnic diploma, university engineering thesis, and STEM educational prototyping projects

Important Notes:

• Contrast Adjustment: If the text characters appear invisible or completely dark/blocked upon powering up, adjust the voltage on the V0 (Contrast) pin using a 10k potentiometer until the characters become sharp and clear.
• Backlight Resistor: Ensure the LED backlight anode (A) and cathode (K) pins are powered correctly (typically 5V with a built-in or external current-limiting resistor of 220 ohms) to prevent burning out the backlight LEDs.
• Wiring Complexity: Direct parallel wiring requires 6 digital pins on your microcontroller; to save pins, solder an I2C Serial Adapter Module (PCF8574) onto the back pins to control the display over just 2 wires (SDA and SCL).
• Logic Level: The data pins operate on 5V logic; when using with a 3.3V microcontroller (like ESP32), ensure proper signal compatibility or use an I2C adapter module powered properly.

Package includes

• 1 x LCD Display 16x2 Module (Blue/Green Backlight variant)
