I2C LCD Adapter Module

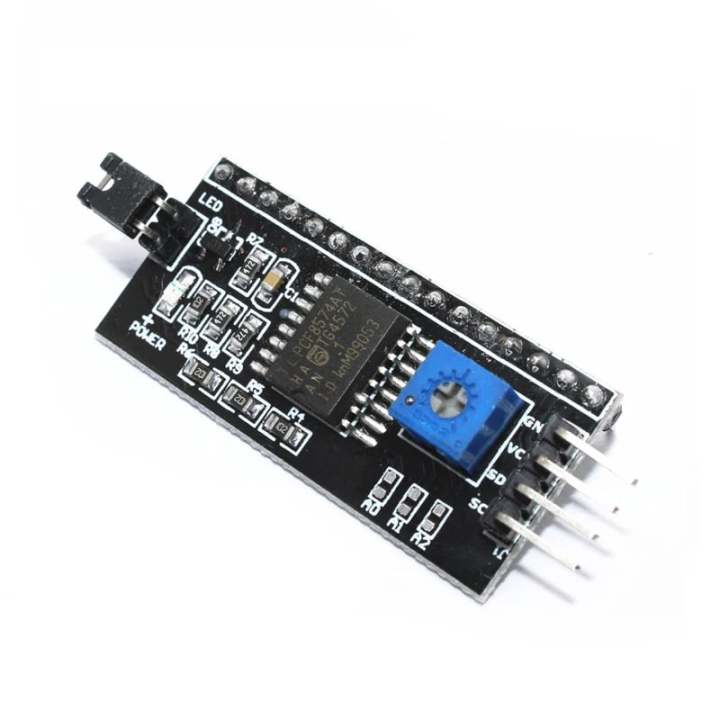

I2C LCD Adapter Module is a essential serial expansion board designed to convert standard 16x2 and 20x4 character LCD displays (HD44780 based) into 2-wire I2C interfaces. By utilizing the PCF8574 8-bit I/O expander chip, this adapter reduces the required microcontroller control pins from 6 or 16 GPIOs down to just 2 serial communication lines (SDA and SCL). Featuring an onboard contrast adjustment potentiometer, a backlight jumper switch, and a power indicator LED, it significantly simplifies wiring, cleans up breadboard clutter, and frees up valuable GPIO pins on microcontrollers like Arduino, ESP32, ESP8266, and Raspberry Pi.

Features

• Reduces LCD pin count requirement from 6-12 GPIO pins to only 2 I2C signal lines (SDA, SCL)
• Driven by the reliable PCF8574 / PCF8574T 8-bit remote I/O expander IC

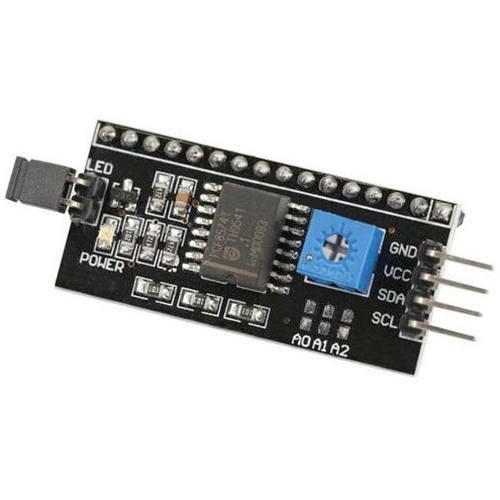

• Built-in precision trimmer potentiometer for effortless manual LCD contrast tuning
• Onboard backlight control jumper allows manual or software-driven backlight power switching

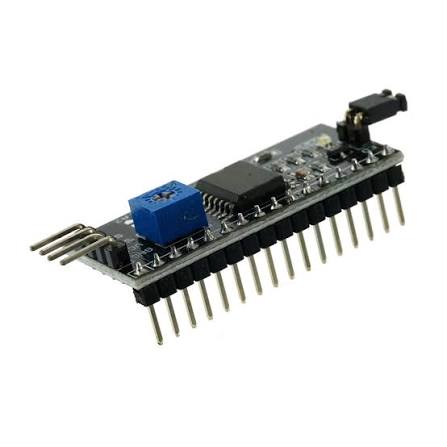

• Universal 16-pin male header layout designed for direct soldering onto standard 16x2 (1602) and 20x4 (2004) LCD modules

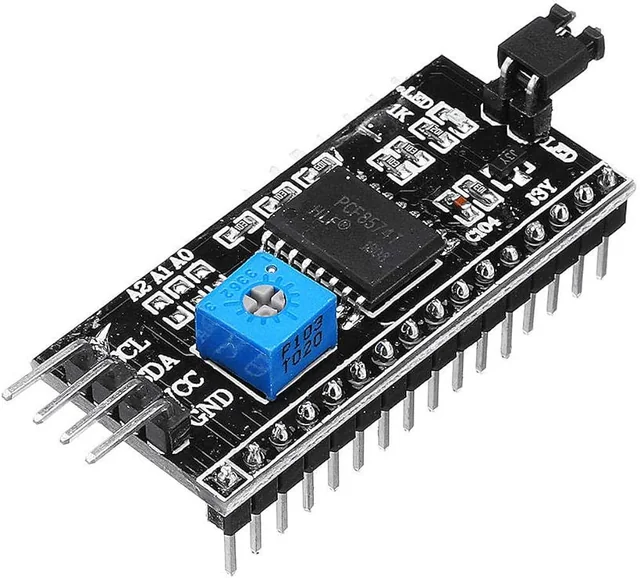

• Adjustable I2C address via solder pads (A0, A1, A2) supporting up to 8 displays on a single I2C bus
• Wide operating voltage range (2.5V to 6V DC), fully compatible with 3.3V and 5V microcontrollers
• Power indicator LED providing instant status feedback

Applications

• Serial conversion for 16x2 and 20x4 character LCD screens in microcontroller projects
• GPIO-constrained embedded systems, smart home automation hubs, and weather stations
• Industrial data monitoring panels, battery status readouts, and digital counters
• Robotics status displays and user interaction menu panels
• Polytechnic diploma, university engineering thesis, and Arduino/ESP32 IoT prototyping

Important Notes:

• Soldering Required: The 16-pin male header pins must be soldered directly onto the 16-pin row of your 16x2 or 20x4 LCD screen for proper electrical contact.
• Blank Screen / Solid Blocks: If your LCD shows only solid white/blue blocks or appears completely blank after powering on, rotate the onboard blue potentiometer using a small screwdriver to adjust the display contrast until the text characters become clearly visible.
• I2C Address Identification: While 0x27 and 0x3F are standard default I2C addresses, upload an "I2C Scanner" sketch to your microcontroller if your code fails to communicate with the display to confirm the exact address.
• Library Compatibility: Use standard, well-maintained libraries such as LiquidCrystal_I2C in the Arduino IDE for instant setup.

Package includes

• 1 x I2C LCD Adapter Module (with pre-soldered 16-pin header)
