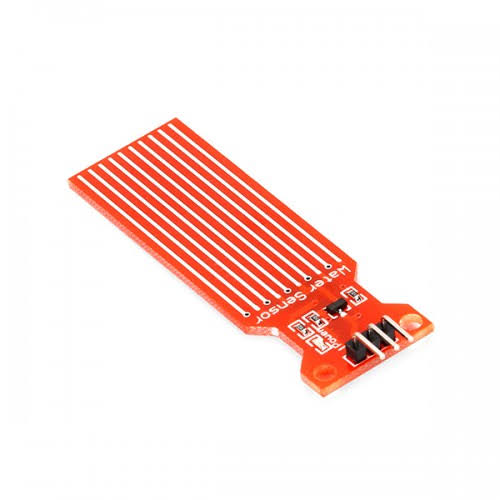

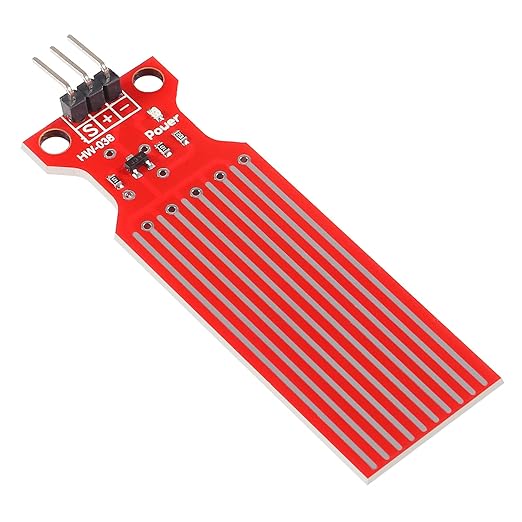

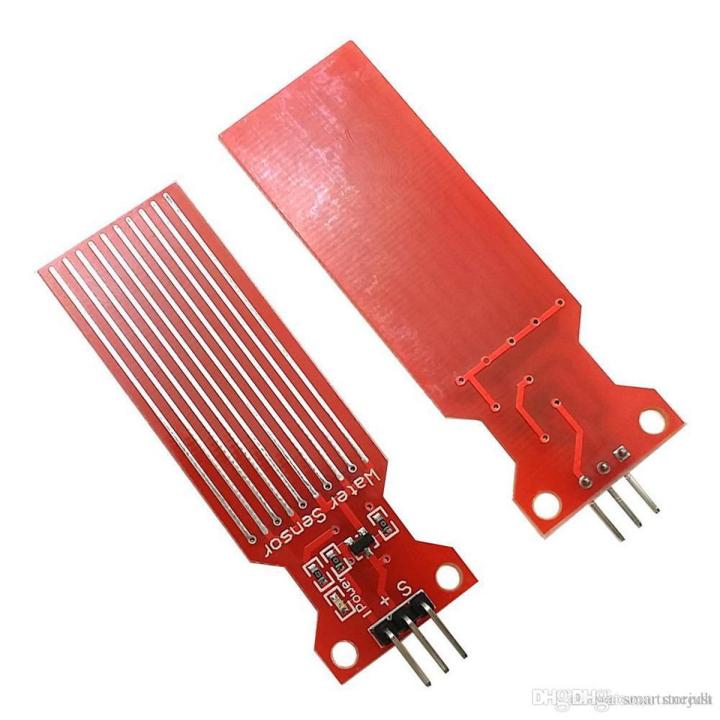

Water Level Sensor Depth of Detection Water Sensor for Arduino

Water Level Sensor Depth of Detection Module for Arduino is a compact, cost-effective water depth and liquid level detection sensor designed to monitor water presence, droplet splashing, and fluid levels through exposed parallel trace lines. Operating on the resistive measurement principle, this sensor measures water immersion levels by detecting changes in conductivity across exposed copper traces, outputting an analog voltage proportional to the submerged surface area. Featuring a power indicator LED, an adjustable sensitivity comparator output, and corrosion-resistant nickel-plated traces, it is an essential component for automated plant watering systems, rain detectors, flood alarm circuits, and water tank monitoring projects.

Features

• Equipped with parallel exposed conductive traces acting as a variable resistor dependent on water immersion depth
• Powered by an onboard LM393 dual differential comparator chip providing both analog signal output and digital threshold switching
• High-durability nickel-plated trace coating preventing premature copper oxidation and galvanic corrosion during liquid contact
• Onboard sensitivity adjustment potentiometer allowing precise calibration for detecting water droplets vs. full immersion
• Dual output interface providing raw analog voltage (AO) for depth calculation and digital switch output (DO) for flood/level alarms
• Active indicator LEDs for power status (Red) and sensor trigger detection (Green)
• Standard 3-pin or 4-pin interface compatible with 3.3V and 5V microcontroller logic levels
• Compact PCB form factor with an integrated mounting hole for secure mechanical installation inside tanks or containers

Applications

• Automated plant watering systems, soil moisture feedback, and smart greenhouse irrigation controllers
• Rain drop sensors, weather station precipitation detectors, and outdoor leak warning alarms
• Sump pump overflow monitors, washing machine leak detectors, and basement flood alarm systems
• Simple water level indicators for fish tanks, aquariums, and small liquid reservoirs
• Polytechnic diploma, university engineering thesis, and Arduino/ESP32 IoT environmental monitoring projects

Important Notes:

• Corrosion Consideration: Because resistive water sensors pass a small electric current through water to measure conductivity, prolonged continuous submersion can accelerate galvanic electrolysis and trace wear over time. For long-term continuous immersion, periodically inspect the traces or switch to capacitive water sensors.
• Electronics Protection: The lower sensing traces are designed to get wet, but the upper electronic components (the LM393 chip, resistors, and header pins) must not be submerged in water to prevent short circuits and permanent board damage.
• Analog Reading Calibration: In dry air, the analog output voltage sits near 0V. As water level rises up the traces, the analog output increases proportionally, allowing you to map the ADC values to approximate water depth levels.
• Logic Compatibility: Connect VCC to 3.3V or 5V matching your microcontroller logic, and GND to system ground.

Package includes

• 1 x Water Level Sensor Module Board
