Turbidity Sensor Suspended Turbidity Value Detection Module Kit

Turbidity Sensor Suspended Turbidity Value Detection Module Kit is an optical water quality monitoring module designed to measure water clarity, suspended solid concentrations, and particle turbidity in liquid solutions. Operating on an optical transmission and reception principle, this sensor measures light transmittance and scattering caused by suspended sediments, micro-particles, and organic pollutants in water—higher turbidity scatters more light, reducing the received phototransistor voltage. Featuring a dual-mode signal conversion board offering both analog output (for precise water clarity mapping) and digital threshold switching (adjustable via an onboard potentiometer), it is an essential component for environmental water testing, washing machine quality control, river water monitoring, and aquarium filtration systems.

Features

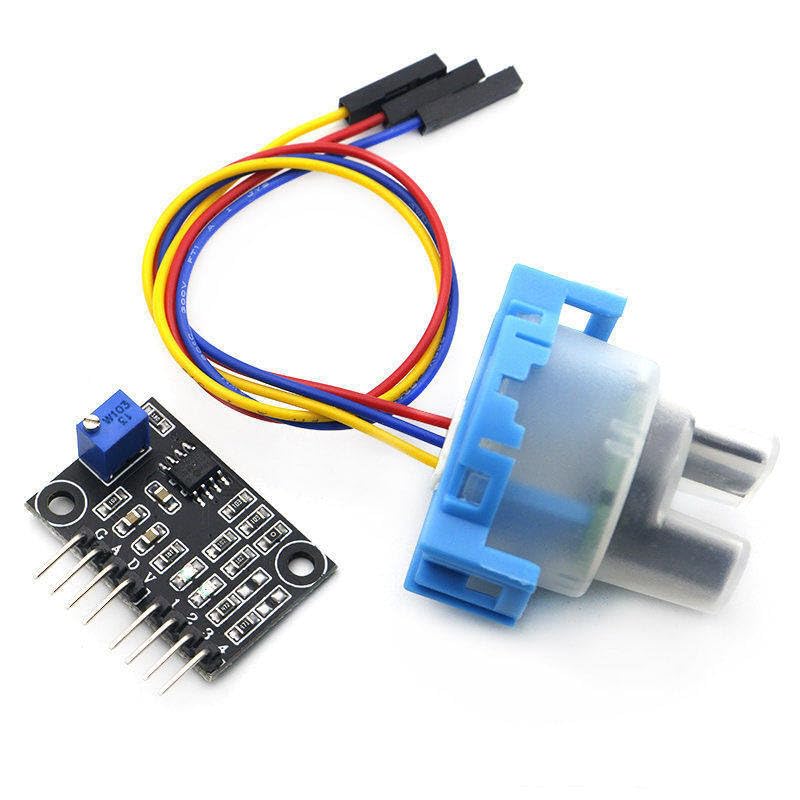

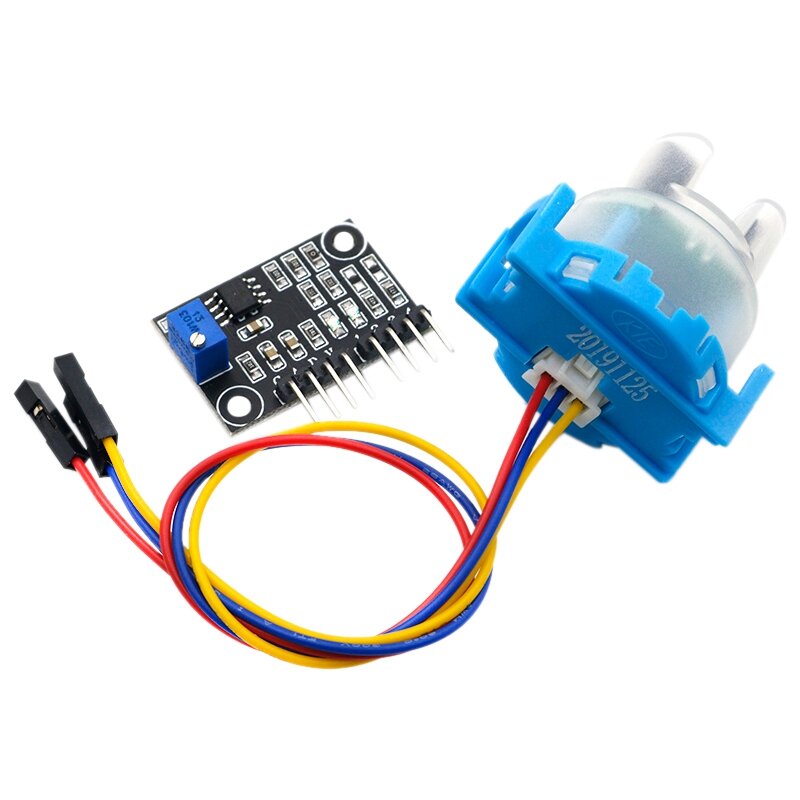

• Optical turbidity detection sensor probe featuring an infrared LED transmitter and a matching phototransistor receiver
• Dedicated signal conversion circuit board supporting dual output modes: continuous Analog Output (AO) and adjustable Digital Switch Output (DO)
• Onboard sensitivity tuning potentiometer for calibrating the digital trigger threshold level for cloudiness detection
• Wide operating voltage compatibility (5.0V DC), directly matching standard Arduino, ESP32, and Raspberry Pi ADC rails
• Active indicator LEDs for power status (Red) and output trigger signal detection (Green)
• Waterproof probe cabling allowing safe submersion of the optical lens assembly into liquids while keeping electronics dry
• Compact PCB layout with pre-drilled mounting holes for secure physical placement in project enclosures or fluid reservoirs
• Ideal sensor for detecting water contamination, filter clogging, and suspended silt levels

Applications

• Water quality monitoring stations, river water silt testing, and environmental pollution studies
• Automated washing machines, dishwashers, and laundry rinse-cycle clarity detectors
• Aquarium filtration efficiency monitoring, fish tank water cloudiness alerts, and hydroponic reservoirs
• Industrial wastewater treatment systems and municipal drinking water clarity verification
• Polytechnic diploma, university engineering thesis, and Arduino/ESP32 IoT water quality projects

Important Notes:

• Probe Positioning: Only submerge the lower optical sensor probe part into the liquid. Keep the connector wire junction and the main signal conversion board completely dry to prevent short circuits.
• Optical Cleanliness: Ensure the optical transmissive lens faces are clean and free of algae, oil film, or mineral deposits before taking measurements, as surface residue can scatter light and cause false high-turbidity readings.
• Analog Voltage Mapping: In crystal clear water, the analog output voltage is typically at its highest (around 4.5V). As turbidity increases (more particles scattering light), the analog voltage drops. Account for this inverse relationship in your microcontroller code.
• Calibration: Because ambient light and water color can influence readings, calibrate your baseline values using fresh distilled water as a 0% turbidity reference point.

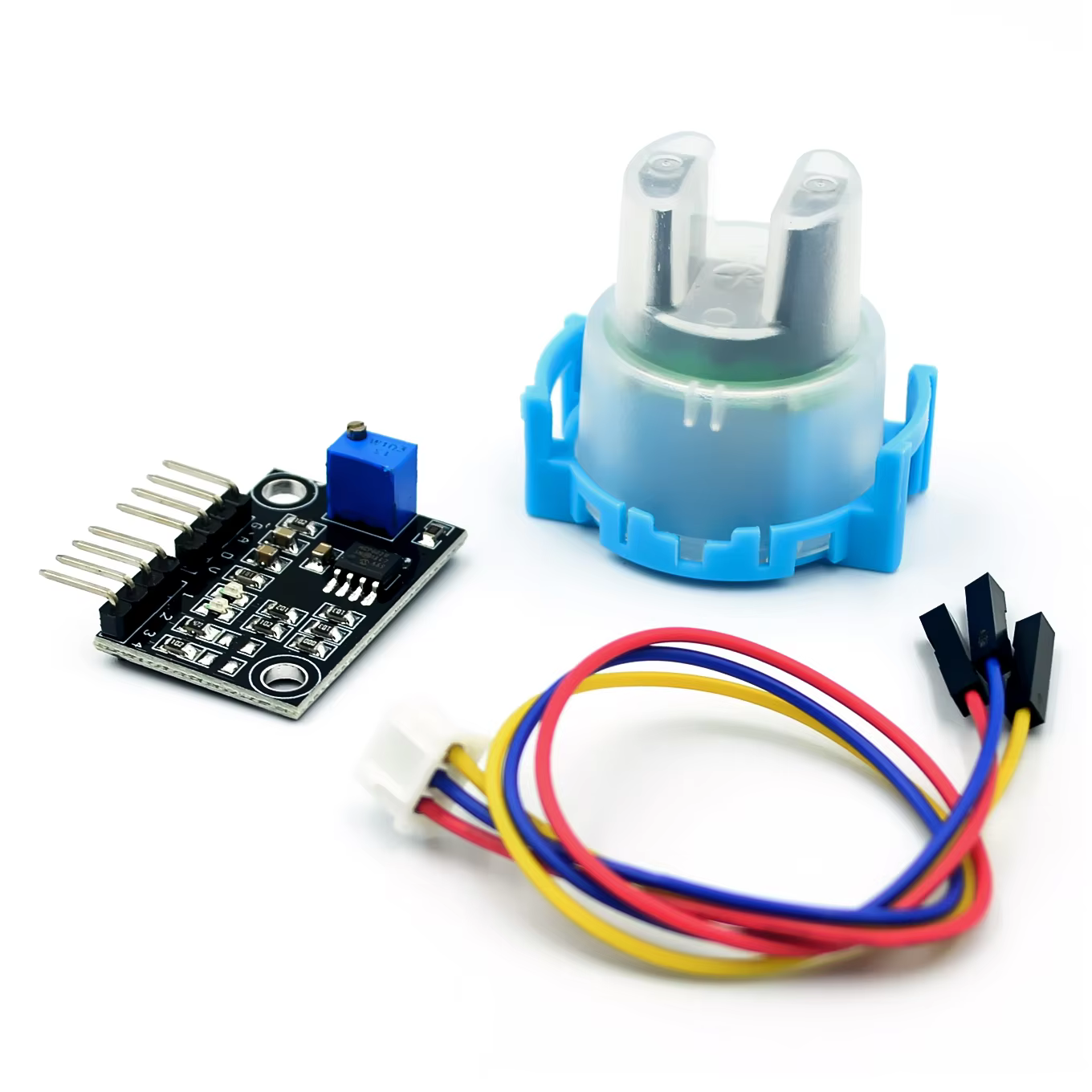

Package includes

• 1 x Turbidity Sensor Probe with Waterproof Cable
• 1 x Signal Conversion Circuit Board (LM393 Comparator)
• 1 x Sensor Connection Cable Set
