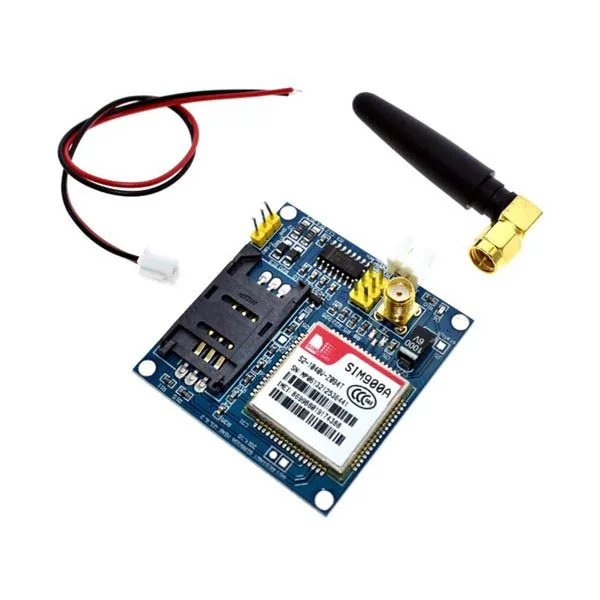

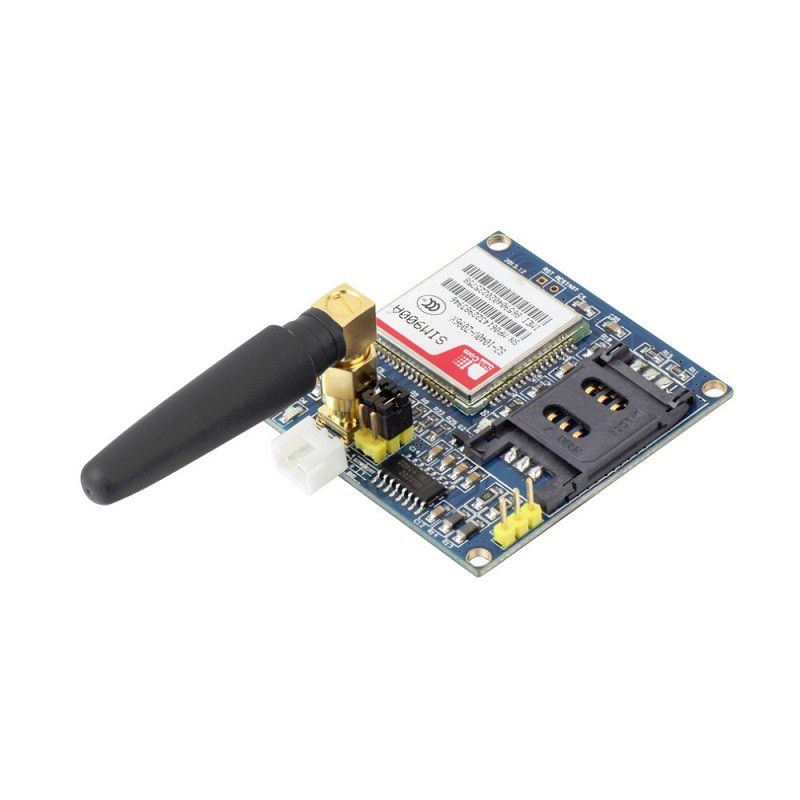

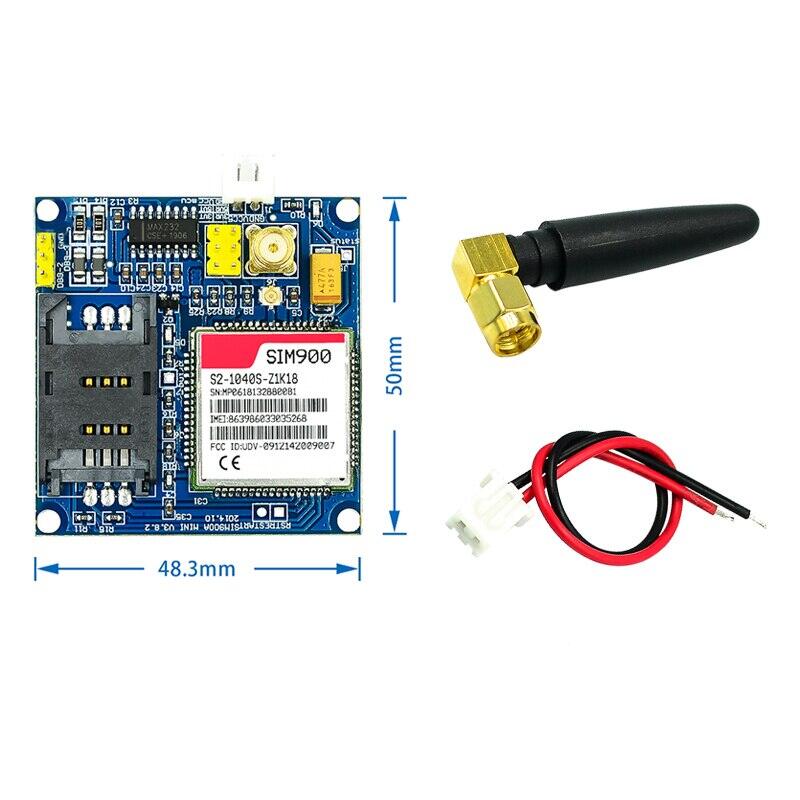

SIM900A Mini Module 5V

Overview

SIM900A Mini Module 5V is a compact GSM/GPRS communication module designed for student, hobby, and IoT projects. It can be used with Arduino, ESP32, Raspberry Pi, and other microcontrollers for SMS, voice calls, and 2G GPRS data communication.

Features

• Supports GSM/GPRS 2G communication
• Works with 900/1800 MHz GSM networks
• Send and receive SMS
• Make and receive voice calls
• Supports GPRS mobile data
• Compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers
• 5V power input for easy project integration
• Controlled using standard AT commands
• Suitable for student, robotics, IoT, and automation projects
• Wiring guide & sample code available on request

Applications

• GSM-based student and university projects requiring SMS and voice communication
• IoT and home automation systems for remote monitoring and device control
• Security and alarm systems for sending SMS alerts and making emergency calls
• Vehicle and asset monitoring systems when paired with a GPS module
• Remote environmental and agricultural monitoring systems using GPRS data
• Robotics and embedded projects requiring wireless cellular communication
• Industrial telemetry and remote data logging applications
• Academic research, thesis, science fair, and electronics prototyping projects

Important Notes:

• Connect the SIM900A module's GND to the microcontroller's GND to ensure stable serial communication.
• Use a stable 5V power supply capable of handling the module's high current peaks during GSM transmission.
• The module requires a compatible 2G SIM card and an available GSM/GPRS network in your area.
• Always connect the supplied cellular antenna before powering on the module to ensure reliable network performance.
• Insert or remove the SIM card only when the module is powered off.
• Make sure the TX and RX connections are correctly crossed between the SIM900A and your microcontroller.
• Network-dependent features such as SMS, calls, and GPRS require an active SIM card and supported mobile operator service.
• Keep the antenna away from metal objects and electronic interference for better signal reception.
• Actual performance may vary depending on network coverage, signal strength, power supply, and antenna placement.

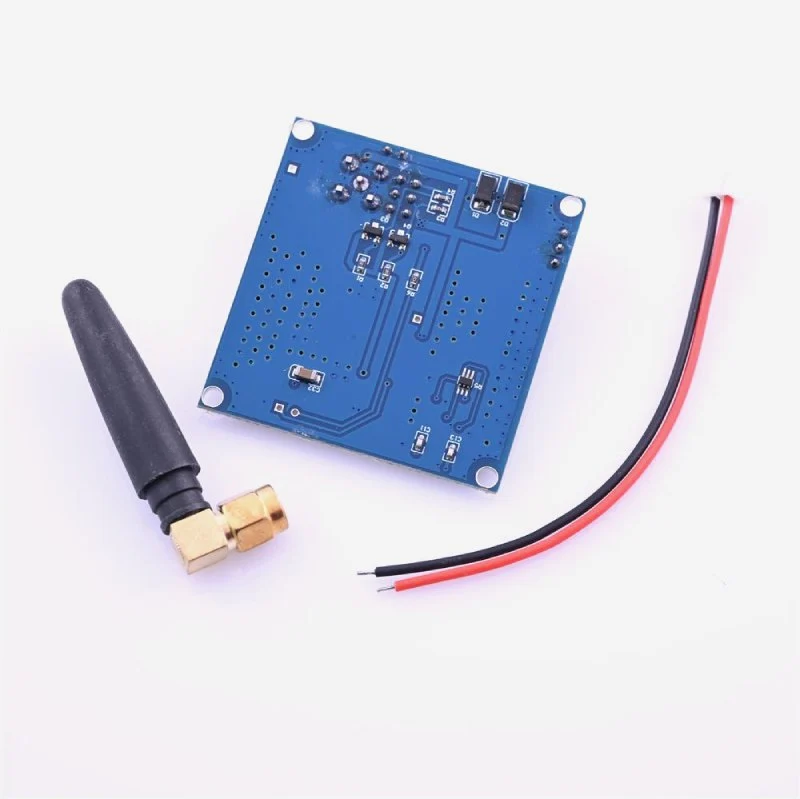

Package includes

• 1 x SIM900A Mini Module 5V
• 1 x Direct Snap-Fit High-Gain Cellular Rod Antenna
• 1 x Auxiliary Flying Lead Power Jumper Harness
