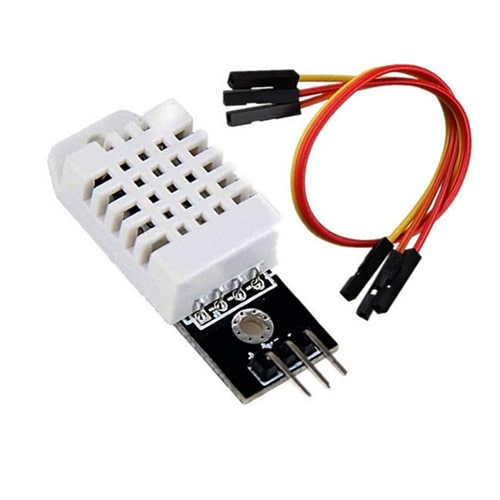

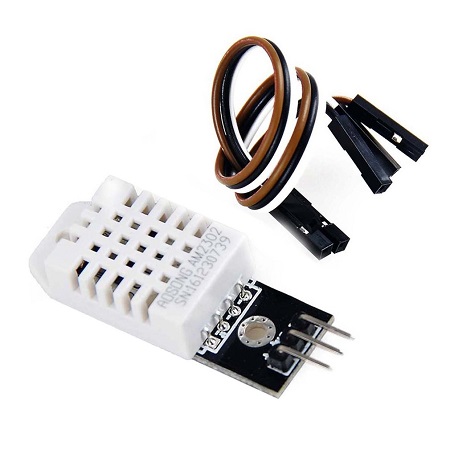

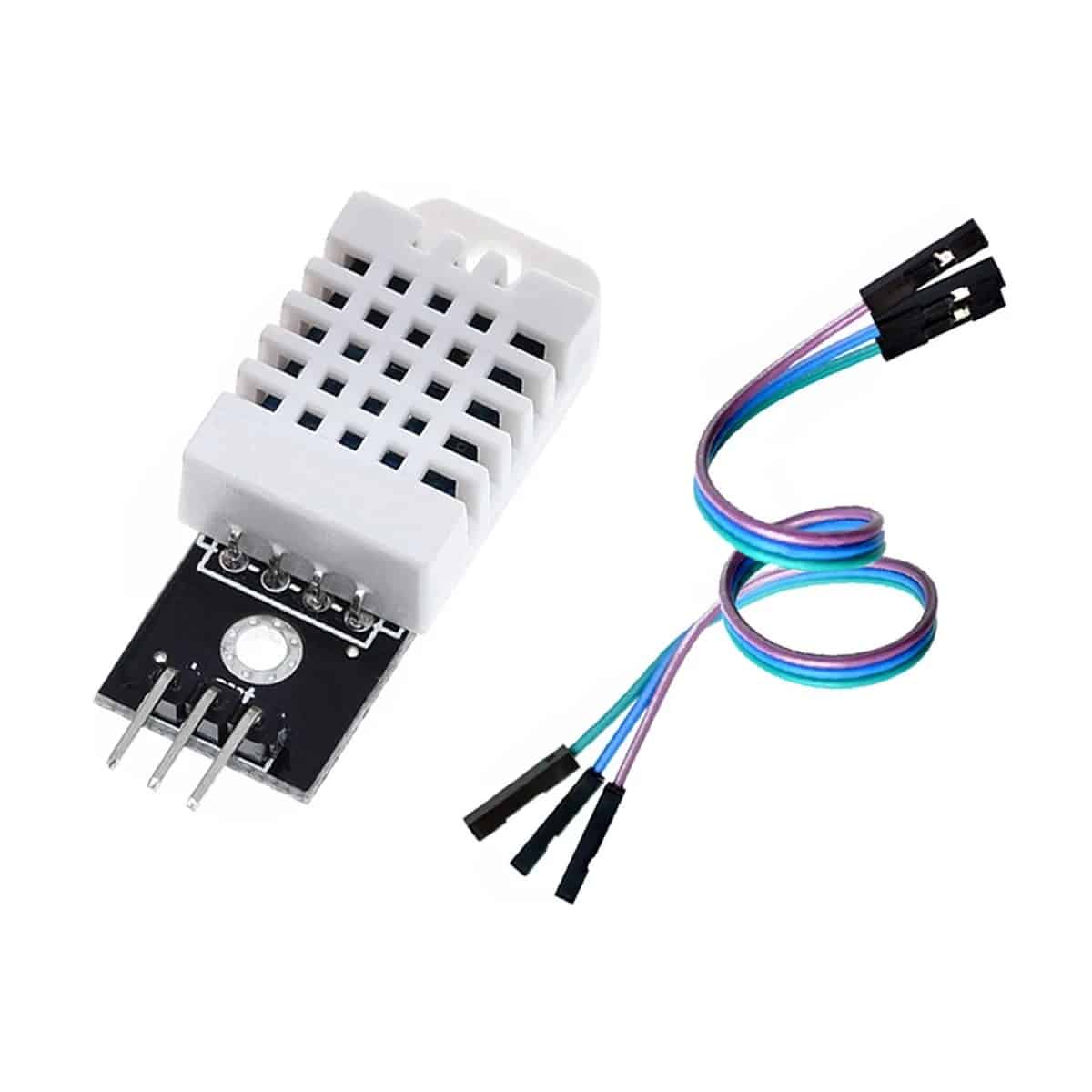

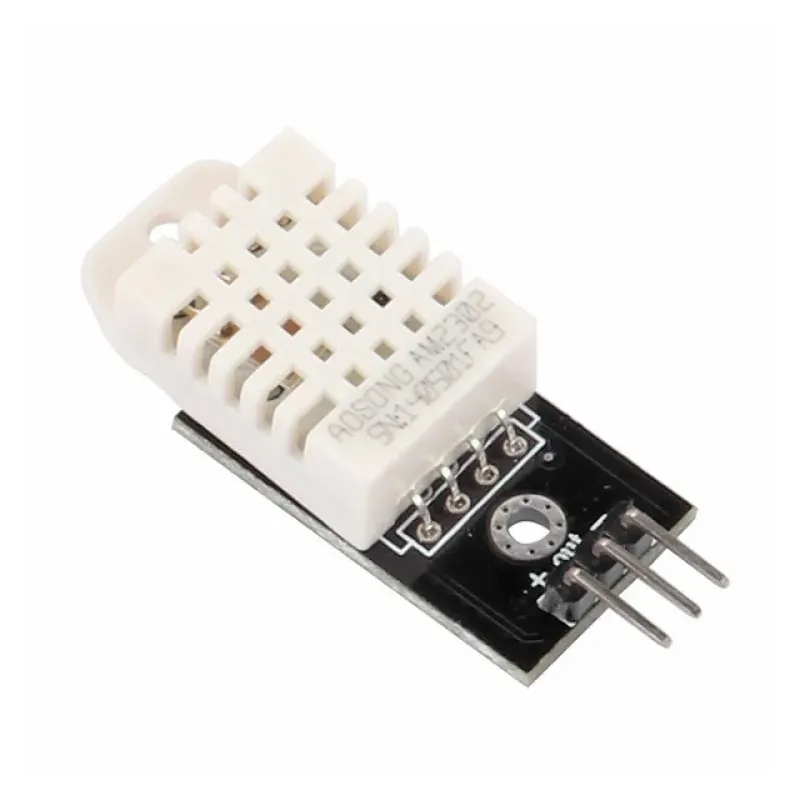

DHT22 Digital Temperature Humidity Sensor Module

DHT22 Digital Temperature Humidity Sensor Module (also known as AM2302) is a high-precision, calibrated digital sensor designed for advanced environmental monitoring and IoT applications. Featuring a capacitive humidity sensing element and a high-precision thermistor core, it delivers significantly higher accuracy, a wider measuring range, and faster response times than the standard DHT11. Housed on a convenient breakout PCB with built-in pull-up resistors and power filtering, it integrates effortlessly with Arduino, ESP32, and Raspberry Pi platforms for weather stations, HVAC systems, and precision incubators.

Features

• High-precision digital output providing exact relative humidity and temperature readings
• Wider measuring range covering sub-zero temperatures up to high thermal limits and 0–100% humidity
• Outstanding long-term stability and fast response time to atmospheric changes
• Onboard breakout PCB featuring pre-soldered pull-up resistors and power indicator LED
• Standard 3-pin or 4-pin interface (VCC, Data, GND) for simple breadboard or jumper wire connection
• Low power consumption ideal for battery-powered wireless IoT sensor nodes
• Fully compatible with standard open-source libraries (DHT.h, Adafruit_Sensor)
• Reliable digital single-bus communication protocol ensuring noise-resistant data transfer

Applications

• Professional weather stations and precision indoor/outdoor atmospheric monitoring setups
• Advanced smart home climate control, HVAC testing, and automated greenhouse systems
• Incubators, mushroom cultivation farms, and pharmaceutical storage monitoring
• Server room climate tracking and humidity warning alarms
• Polytechnic diploma, university engineering thesis, and advanced Arduino/ESP32 IoT projects

Important Notes:

• Sampling Interval: Query the DHT22 sensor at intervals of at least 2 seconds (0.5 Hz); polling faster can result in timeout errors or incorrect readings.
• Ensure correct wiring polarity (VCC to 3.3V/5V, GND to Ground, DATA to digital pin); reverse voltage connections will permanently damage the internal sensor IC.
• While breakout modules include an onboard pull-up resistor, bare DHT22 sensors require a 4.7kΩ to 10kΩ pull-up resistor connected between the Data and VCC lines.
• Protect the sensor from direct water splashing or condensation pooling on the capacitive sensing grille to prevent temporary signal corruption.

Package includes

• 1 x DHT22 Digital Temperature Humidity Sensor Module
